QUESTION 19
Choose the correct answer.
An engineer is building a model of a system that includes both Low Earth Orbit (LEO) and Geosynchronous Orbit (GEO) satellites.
Which diagram fragment shows a well-designed set of domain stereotypes that can be applied to the blocks representing those system elements?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

QUESTION 20
Choose the correct answer.
To “show what you know” about SysML a Systems Engineer (SE) must take a total of four examinations in order Model User (MU). Model Bulkier Fundamental (MBF), Model Builder intermediate (MBI> and Model Builder Advanced (MBA). The SE must also study before taking each exam.

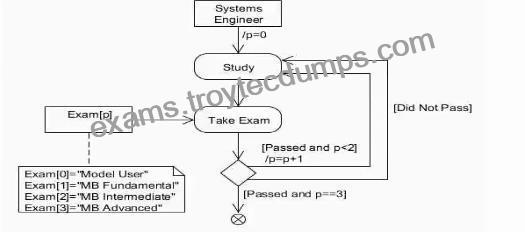

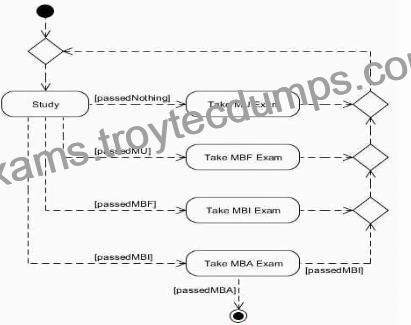

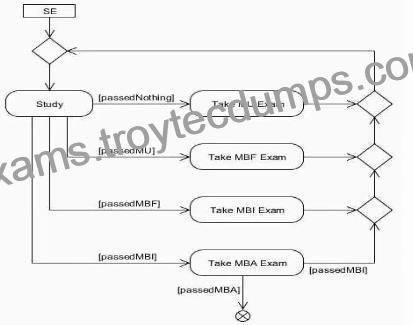

Which activity diagram fragment correctly uses object state constraints to document the process of studying and taking the exams, ensuring that the exams are taken in order of increasing difficulty, and allowing for the possibility that exams may have to be repeated?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

QUESTION 21
Choose the correct answer.
Given the following diagram:

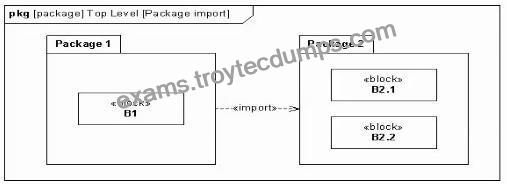

Which diagram is correct?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

QUESTION 22
Choose the correct answer.
Given the following diagram:

Which generalization constraint keywords should be used to specify that:
1- the set of all instances of Car is not fully covered by its three shown subtypes, Small, Medium, and Large, AND
2- an instance of Car is exclusively either Small Medium, or Large

(not full, exclusive)

(partial, exclusive)

{Incomplete, xor)

(incomplete disjoint)

{subset, disjoint}

QUESTION 23
Choose the correct answer.
What is a property that may be calculated by analysis of the model?

a derived property

an analysis property

a calculated property

an estimation property

a replacement property

QUESTION 24
Choose the correct answer
Different Block kinds are modeled using stereotypes such as <system>, <subsystem> or <software> Where are these stereotypes typically defined?

The modeling tool provides the stereotypes

The stereotypes are part of the SysML standard

Each modeler who writes requirements can define stereotypes

A profile that maps modeling methodology concepts to the model defines the stereotypes

QUESTION 25
Choose the correct answer
How is a testCase used to validate a requirement?

The testCase model element can be used in SystvIL but it only applies to software

Validation of a requirement can be indicated using a satisfiedBy relationship to a testCase

Only the verdict model element (which can be a property of a testCase) can have a verifies relationship to a requirement.

A requirement can have a vehfiedBy relationship to a testCase even if the test has not yet been conducted or even fully specified

testCase is part of the UML Testing Profile and cannot be used with SysML.

QUESTION 26
Choose the correct answer.

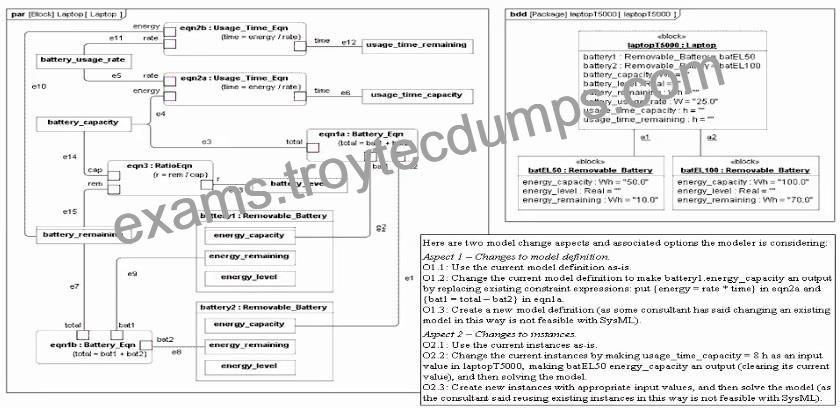

The essentials of a laptop battery capacity model are shown In the following diagrams (where the value types W, h and Wh stand for watl, hour, and watt-hour respectively). Assume that the instance values shown are inputs, and that nothing relevant has been omitted.

The designer needs to determine what the energy_capacity of battery 1 should be to enable a laptop usage_time_capacity time of 8 hours. Which combination of the options listed in the text box in the figure will achieve this Intent with minimal changes (including minimal new aspects)?

O1.1 and O2 1

O1.1 and O2 2

O1 1 and O2 3

O1.2 and O2.1

O1 7 and O2.2

O1.2 and O2.3

O1 3 and O2 3

QUESTION 27
Choose the correct answer.
Given the following bdd fragment and table showing messages sent between blocks:

Block C Is encapsulated; none of the other blocks are.
Which Ibd for block A has the correct assignment of flow ports and connectors? If two or more options are correct, select the one with the fewest ports.
A)

B)

C)

D)

Option A

Option B

Option C

Option D

QUESTION 28
Choose the correct answer.
Given the model composed of the following diagram:

The modeler has set all shown values us inputs and next intends to solve the mode that is, to calculate the outputs. Assume nothing relevant has been left out.
What is wrong with this model?

The modeler set a1 as an input value in case1.

Block A cannot be used by both easel and case2.

Both easel and case2 should not be underlined.

The slash (/) in property a1 of BlockA is an error that paramethes will assume to be a division sign.

QUESTION 29
Choose the correct answer
What does a <rate> applied to an activity edge specify?

a lower bound on the number of changes to an object’s value per time Interval

a lower bound on the number of objects that will traverse the edge per time interval

the expected number of changes to an object’s value per time interval.

the expected number of objects that traverse the edge per time interval

an upper bound on the number of changes to an object’s value per time interval

an upper bound on the number of objects that will traverse the edge per time interval

QUESTION 30
Choose the correct answer.
Given the following diagram fragment:

What is the correct way to show, on the diagram, that a Taxi has four wheels and Bus has six wheels?

initialize the multiplicities of wheel as part of the system Initializer

draw new relationships between Taxi and Wheel and Bus and Wheel using the same role name but different multiplicities

draw new relationships between Taxi and Wheel and Bus and Wheel with the specific multiplicities and mark the wheel end as redefining the wheel end of the relation between PublicTransportCar and Wheel

draw new relationships between Taxi and Wheel and 8us and Wheel with the specific multiplicities and mark the wheel ends as subsets of the wheel end of the relation between PublicTransporlCar and Wheel

QUESTION 31
Choose the correct answer
What is an effective and efficient approach to project modeling standards and conventions?

Every project should create its own domain specific profile to describe modeling standards and conventions

Organizations should create specific modeling standards and conventions to ensure modeling consistency across projects

The SysML specification alone is sufficient to describe modeling standards and conventions when the modeling tool has a proper implementation of SysML

The SysML specification and the modeling tool documentation are sufficient to describe modeling standards and conventions

QUESTION 32
Choose the correct answer
What is the significance of the verify relationship?

The verify relationship is restricted to relating a requirement to a testCase only.

The verify relationship extends the refine relationship to specify how the requirement will be verified.

The verify relationship is an extension of the satisfies relationship, relating a block to a verification activity.

The verify relationship relates a requirement to some other model element such as a testCase. activity, or interaction that can prove the requirement has been satisfied.

The verify relationship is used to prove. That the assertion of the satisfy relationship is true Thus, a verify relationship is meaningless without a corresponding satisfy relationship.

QUESTION 33
Choose the correct answer
In a state machine which behavior can be interrupted by a transition which leaves the current state?

a do behavior

an entry behavior

an exit behavior

the effect of an internal transition

QUESTION 34
Choose the correct answer.
A system engineer specializing in rigid body dynamics wants to model the laws of motion (LOM) so that they may be reused to analyze different types of systems. The LOM consist of the mathematical relations R1 and R2. shown here.
(R1)s=ut + (1/2)at2
(R2) v = u + at
How should the system engineer represent and relate LOM. R1, and R2 in SysML?

Create a block for each of LOM. R1 and R? Then create part properties in LOM that are typed by R1 and R?

Create an activity for each of LOM. R1, and R2. Then, create actions in LOM that are typed by R1 and R2.

Create a constraint block for each of LOM. R1. and R2 Then, create part properties in LOM that are typed by R1 and R2.

Create a constraint block for each of LOM. R1, and R2- Then, create constraint properties m LOM that are typed by R1 and R2.

QUESTION 35
Choose the correct answer.
In the following bdd, A delegates both of its ports to B:

Which ibd correctly represents this?
A)

B)

C)

D)
